Platform

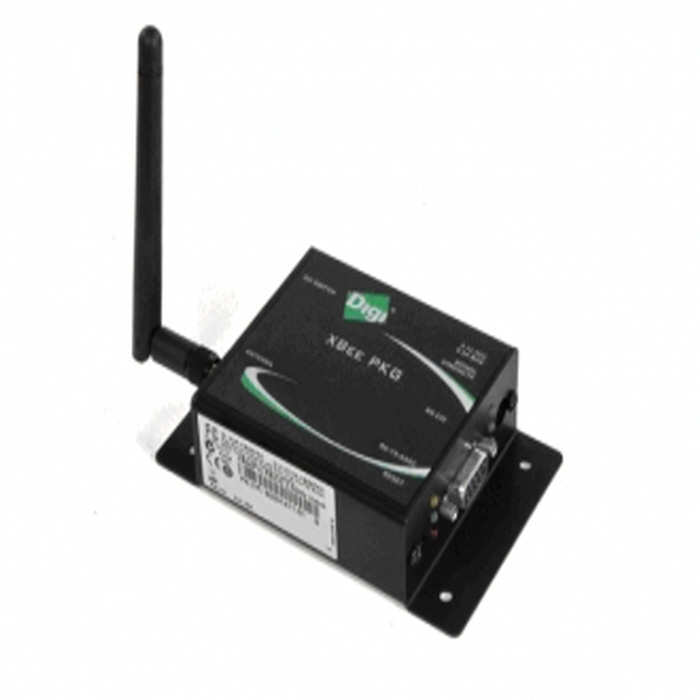

XBee-PRO RS-232 RF Modem

Performance

Transmit Power Output

60 mW, 100 mw(20 dBm) EIRP

Indoor/Urban range

(2.1dB dipole antenna)

Up to 300 ft (100 m)

Outdoor/RF line-of-sight range

(2.1dB diploe antenna)

Up to 600 ft (200 m)

Addressing Layers

PAN ID, Channel & Source Addresses

RF data rate

250 Kbps

frequency

2.4 GHz

Interface data rate

1200 – 115200 bps(non-standard baud rates also supported)

Networking

Spread spectrum type

DSSS (Direct Sequence Spread Spectrum)

Supported network topologies

Point-to-point, point-to-multipoint, & peer-to-peer

Number of Channels

12 Channels

Antenna

Connector

RPSMA(reverse polarity SMA)

Impedance

50 ohms unbalanced

Power Requirements

Power Supply

5 – 14V

Receive Current

80 mA

Transmit Current

300 mA

Power-down Current

<6 mA

Physical Properties

Size

4,500 x 2,750 x 1,125(11.4 x 7.0 x 2.9)]

Weight

5.25 oz(150g)

Data Connection

Female DB-9

Operating temperature

-40 – 85C(Industrial)

Certifications

<
